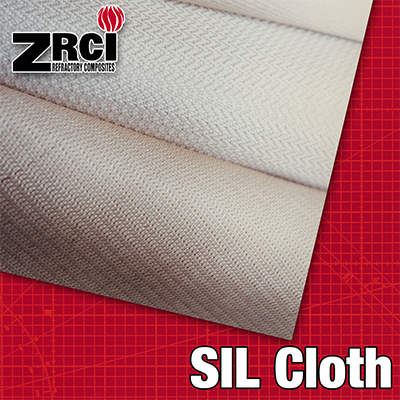

SIL Cloth

  Brooke Hamling   Sep 07, 2018     Comments Off on SIL Cloth
SIL 1, SIL2, SIL3

General Info

ZIRCAR Type SIL Silica Cloths consists of high temperature  non textured amorphous silica fiber yarn, woven into an extremely strong fabrics. These non preshrunk textiles are ideal for applications with continuous use up to 1250°C (2300°F) or occasional excursions up to 1600°C(3000°F).These silica textiles are strong and easy to work with. They exhibit good handleability and remain flexible in numerous high temperature applications. They are extremely flexible and are resistant to most chemicals.

Type SIL cloths are useful where non-RCF textiles are desired.

Type SIL Silica Cloths meet Mil Spec MII-C-24576 type 1, Class 2.

Properties



Type

SIL-1

SIL-2

SIL-3

Typical composition, %
SiO2 96 96 96
Other oxides 4 4 4
Maximum Use Temperature,* °C(°F)

1250 (2300)

1250 (2300)

1250 (2300)

Excursion  Temperature, °C(°F)

1600 (3000)

1600 (3000)

1600 (3000)

Weight, gm/m²(oz/yd²)

600(18)

1200(36)

800(24)

Thickness, mm(in)

0.71(0.028)

1.37(0.054)

1.02(0.040)

Roll Width, m(in)

0.914(36)

0.914(36)

0.914(36)

Weave

Crowfoot

Satin

Herringbone



*  Maximum use temperature is dependent on variables such as stresses, both thermal and chemical, and the chemical environment that the material experiences.

Composition

  • Flexible and Strong
  • Highly Insulating, Low Mass
  • Chemical Resistant
  • Non RCF

Instructions

SUGGESTED APPLICATIONS

  • High temperature lagging cloth.

  • Heat treat/ stress relief insulation

  • High temperature composite fabrication.

  • Welding curtains.

  • Furnace curtains.

  • Cable tray insulation.

  • Fabrication of High Temperature Clothing.

  • Asbestos textile replacement.

  • Flexible and resilient gasketing, joints and seals.

  • Personal shielding protection in welding, metal cutting and other high heat applications.

  • Applications where a high temperature flexible form is needed.

  • Useful when non-RCF textiles are desired

PDF

Download the SIL Cloth PDF File

SDS (in PDF format)

Download 1st PDF File

Other Information



AVAILABILITY

Please call, fax or e-mail for pricing and availability.



Item # Description
NS51 TYPE SIL-1, 36″ X  50 LYD X 0.028″
NS52 TYPE SIL-2, 36″ W X  50 LYD X 0.054″
NS53 TYPE SIL-3, 36″ W X  50 LYD X 0.040″





PRICES ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION AND ARE SUBJECT TO ZIRCAR REFRACTORY COMPOSITES, INC. TERMS AND CONDITIONS. ALL PRICES ARE F.O.B. FLORIDA, NY AND ARE IN U.S. DOLLARS



Note: These products can be further processed to provide finished sizes. Processes such as slitting, cutting, die punching and CNC machining are available upon request. Larger sizes are available upon request.



ZIRCAR Type SIL Silica Cloths are available as tapes, ropes and sleeving. Please contact ZIRCAR at (845) 651-2200 for further details.
