General Info
ZIRCAR Refractory Composites, Inc. insulating blankets are non woven, inorganic, fiber-based products that contain no asbestos. They are engineered for use as thermal barrier materials in high temperature applications up to 1400°C (2550°F). Commonly used in the molten metal casting and heat treating industries, ZRCI materials are also used as specialty gasketing in the fuel cell, nuclear, glass and electronic industries, as well as many other applications which require high temperature stability and low thermal conductivity. They also offer excellent corrosion resistance and unique handling strength for easy die-cutting, wrapping and forming.

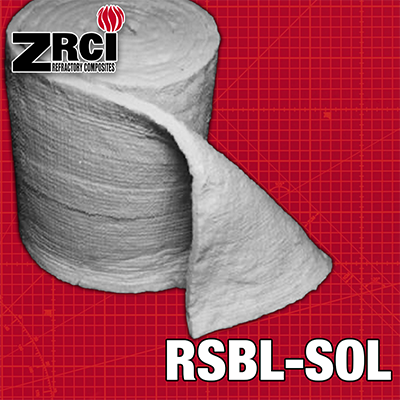

ZRCI Silica-Magnesia Blanket Type RSBL-SOL is made from soluble NON RCF fiberformed into a mechanically needled flexible blanket capable of withstanding continuous operating temperatures up to 1400°C (2550°F). It is designed to have enhanced in-vitro solubility characteristics. The fibers are soluble in body fluids and offer users an alternative to refractory ceramic fiber blankets. Type RSBL-SOL Blankets meet European regulatory requirements (Directive 97/69/EC).
Type RSBL-SOL is an inorganic, needled insulating blanket which is manufactured using 1400°C (2550°F) spun fibers. These extra long spun fibers, cross-locked through a unique forming process, produce a blanket with good handling strength. It has excellent chemical stability and is unaffected by most chemicals except hydrofluoric and phosphoric acids and concentrated alkalis. If wet by water or steam, thermal and physical properties remain unaffected after drying. Type RSBL-SOL Blankets also provide superior resistance to attack from molten aluminum alloys at high temperatures.
Type RSBL-SOL Blankets provide solutions to a variety of heat processing problems. They are available in a variety of thickness and densities. They are ideal for use as furnace insulation in sintering, heat treating and chemical thermal process systems. They can be layered between rigid insulation, wrapped around process piping or fabricated into folded modules. They are also useful as insulation packing in furnace spaces, around furnace sight tubes & ports and fill in expansion joints and masonry cracks.
Properties
ADVANTAGES
-
High temperature stability
-
Low thermal conductivity
-
Meet European Regulatory Requirements
-
Flexibility
-
Easy to wrap, shape , or cut
-
Highest melting point of any soluble fiber.
-
Ideal for applications where RCF are not desired.
| TYPE | RSBL-SOL 6 | RSBL-SOL 8 |
| Nominal composition, wt% | ||
| SiO₂ | 70-80 | 70-80 |
| MgO | 18-27 | 18-27 |
| Other Oxides | 0-4 | 0-4 |
| Color | White | White |
| Bulk Density, g/cc (pcf) | 0.096(6) | 0.128(8) |
| Maximum Use Temp., *C(F) | 1400(2550) | 1400(2500) |
| Melting Temp., C(F) | >1500(2760) | >1500(2760) |
| Fiber Diameter | 4.5 | 4.5 |
| Tensile Strength | 40(6) | 60(8) |
* Maximum use temperature is dependent on variables such as stresses, both thermal and mechanical, and the chemical environment that the material experiences.
** Properties expressed parallel to thickness. Properties expressed perpendicular to thickness
Insulating Values: The following table summarizes the insulating characteristics of RSBL-SOL (8 pcf density).
|
Insulation Thickness |
25mm (1″) |
51mm (2″) |
102mm (4″) |
203mm (8″) |
254mm (10″) |
|
Hot Face |
Cold Face °C(°F) |
||||
|
650°C(1202°F) |
171(340) |
119(246) |
82(181) |
59(138) |
53(128) |
|
870°C(1598°F) |
248(479) |
174(346) |
119(247) |
82(180) |
73(164) |
|
1100°C(2012°F) |
338(640) |
243(470) |
168(335) |
114(238) |
101(214) |
Composition
Silica-Magnesia Blanket Type RSBL-SOL is made from soluble NON RCF fiber formed into a mechanically needled flexible blanket capable of withstanding continuous operating temperatures up to 1400°C (2550°F). It is designed to have enhanced in-vitro solubility characteristics. The fibers are soluble in body fluids and offer users an alternative to refractory ceramic fiber blankets. Type RSBL-SOL Blankets meet European regulatory requirements (Directive 97/69/EC).
Instructions
SUGGESTED APPLICATIONS
-
Annealing Cover Seals.
-
Flexible High Temperature Pipe Insulation.
-
Furnace, Kiln, Reformer and Boiler lining.
-
Furnace Door Linings and Seals.
-
Investment Casting Mold Wrap.
-
Expansion Joint Seals.
-
High Temperature Filtration.
-
Nuclear Insulation Applications.
-
Glass Furnace Crown Insulation.
-
Useful When Refractory Ceramic Fiber Are Not Desired.
-
Thermal Reactor Insulation.
-
Soaking Pit Seals.
-
Reusable Insulation For Field Stress Relieving Welds.
-
Insulation For Primary Reformer Header.
-
High Temperature Gasketing.
-
High Temperature Kiln and Furnace Insulation.
-
Fire Protection For Pressure and Cryogenic Vessels.
-
Lining For Incineration Equipment and Stack.
Download the RSBL-SOL Blanket PDF File
Other Information
AVAILABILITY
Please call, fax or e-mail for pricing and availability.
| Item # | Description |
| NS20 | RSBL-SOL6, 24″ X 41′ X 1/2″ |
| NS22 | RSBL-SOL6, 24″ X 24′ X 1″ |
| NS24 | RSBL-SOL6, 24″ X 16.4′ X 1.5″ |
| NS26 | RSBL-SOL6, 24″ X 12′ X 2″ |
| NS30 | RSBL-SOL8, 24″ X 41′ X 1/2″ |
| NS32 | RSBL-SOL8, 24″ X 24′ X 1″ |
| NS34 | RSBL-SOL8, 24″ X 16.4′ X 1 1/2″ |
| NS36 | RSBL-SOL8, 24″ X 12′ X 2″ |
PRICES ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION AND ARE SUBJECT TO ZIRCAR REFRACTORY COMPOSITES, INC. TERMS AND CONDITIONS. ALL PRICES ARE F.O.B. FLORIDA, NY AND ARE IN U.S. DOLLARS.
Note: These products can be further processed to provide finished sizes. Processes such as slitting, cutting, die punching and CNC. machining are available upon request.
