RS-101 Cylinders

  Brooke Hamling   Sep 07, 2018     Comments Off on RS-101 Cylinders

General Info

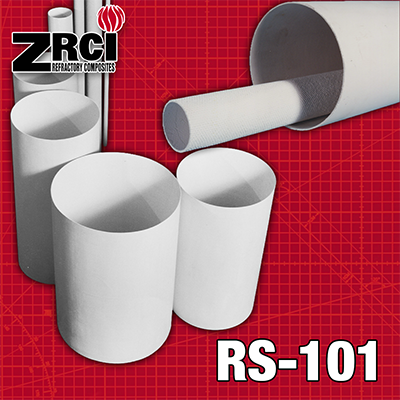

ZRCI Refractory Sheet Type RS-101 is a ceramic fiber reinforced structural alumina product with useful properties to 2300°F (1260°C). It retains strength and utility to levels far exceeding maximum use temperatures of reinforced plastics and asbestos-cement replacements. Type RS-101 not only makes an excellent replacement for rigid asbestos containing products, but also may be employed at much higher temperatures as well. Type RS-101 is 100% inorganic, non-flammable and contains no asbestos. Its high Al2O3 content makes it resistant to many environments including no outgassing on heating, is not brittle, and may be cut and machined with standard tooling. Type RS-101 is available in standard and custom size cylinders.

Refractory Sheet Material is available in board form as Refractory Sheet Type RS-100

Properties

Color

White to buff

Typical Composition, %
   Al2O3

65

   SiO2

21

   Other Metal Oxides

14

   Organics

Nil

Density, kg/m3 (pcf)

1600 (100)

Maximum Use Temperature* C (F)

1260 (2300)

Modulus of Rupture**,
   at Room Temperature MPa (psi)

16.5 (2400)

Thermal Expansion

~4.4×10-6/°F (8×10-6/°C)

Linear Shrinkage^, %
   24hr. soak at  752°F (400°C)

0.2

   24hr. soak at 1112°F (600°C)

0.4

   24hr. soak at 2012°F (1100°C)

2.0

Dielectric Strength (ASTM D-149) volts/mil

55

Volume Resistivity (ASTM D-257) ohm-cm

7.2 x 1011

Surface Resistivity (ASTM D-257) ohms

2.3 x 1011

*Maximum use temperature is dependant on variables such as stresses, both thermal and mechanical, and the chemical environment that the insulation experiences.
** Properties expressed parallel to thickness.
^ Properties expressed perpendicular to thickness.

Composition

Refractory Sheet Type RS-100 Boards are ceramic fiber reinforced structural alumina composite material with useful properties to 1260°C (2300°F). They have flexural and compressive strength in the range of high temperature plastic but retain strength and utility to levels far exceeding maximum use temperatures of plastics. Mechanical properties of Type RS-100 sheets exceed those of asbestos cement materials over all temperature ranges. Their high Alumina content make them resistant to many environments including molten aluminum. They are not brittle and have high impact resistance. Type RS-100 is useful both as a full size panel and as a source for precision cut fabricated components. Type RS-200 Boards have all the properties of Type RS-100 with higher strength due to a finer reinforcement structure. This property makes Type RS-200 ideal for applications where intricate machining detail is needed. Types RS-101 and RS-201 & RS-202 Cylinders are fiber reinforced ceramic laminates in a cylindrical form. They exhibit the same properties as Type RS-100 and RS-200 respectively.

  • Electrically Insulating
  • High Strength
  • High Alumina Content
  • Chemical Resistant
  • Fully Machinable
  • Non RCF

Instructions

SUGGESTED APPLICATIONS

  • Induction coil liners in induction melting furnaces.

  • Molten metal splash guards in induction furnaces .

  • Direct replacement for Transite and othe asbestos cement products.

  • Fireproof structural insulation

  • Electrical insulation, terminals and supports.

  • Induction furnace components.

PDF

Download the RS-101 Cylinders PDF File

SDS (in PDF format)

Download 1st PDF File

Other Information

AVAILABILITY

Please call, fax or e-mail for pricing and availability.

Item # Description
FS01 RS-101, 2″ ID X 2 1/2″ OD X 36″ L
FS02 RS-101, 3″ ID X 3 1/2″ OD X 36″ L
FS03 RS-101, 4″ ID X 5″ OD X 36″ L
FS04 RS-101, 5″ ID X 6″ OD X 36″ L
FS05 RS-101, 6″ ID X 7″ OD X 36″ L
FS06 RS-101, 7″ ID X 8″ OD X 36″ L

PRICES ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION AND ARE SUBJECT TO ZIRCAR REFRACTORY COMPOSITES, INC. TERMS AND CONDITIONS. ALL PRICES ARE F.O.B. FLORIDA, NY AND ARE IN U.S. DOLLARS.

TOLERANCE

±1/16″ inside diameter, wall thickness and length.

SURFACE FINISH:

Standard cylinders have textured inside and outside surfaces (which mimics the structure of the reinforcing fabric). Ends are saw cut. Burnished surfaces are available on a custom basis.

CUSTOM CYLINDERS:

Our forming process allows a wide range of cylinders to be made from inside diameter of 3/4″ with lengths to 72″ to inside diameter of 36″ with lengths to 36″ and wall thickness of 1/16″ to 1″.

Tolerance schedules can vary with cylinder size. We can also supply custom geometries such as round corner square cylinders, troughs, oval cylinders, channel, angle, etc. Contact ZIRCAR with your specific  requirements.
