RS-Tape

  Brooke Hamling   Sep 07, 2018     Comments Off on RS-Tape

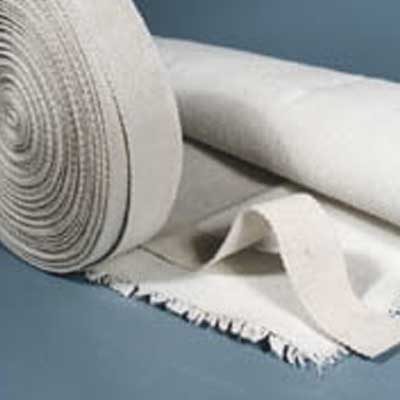

RS cloth and tape

General Info

ZRCI Refractory Sheet Types RS-Cloth and RS-Tape are fiber reinforced alumina composites in a highly flexible form. They are received dried, when wet with water or AL-HARD Hardener they become extremely flexible. They can be wrapped into many simple or complex shapes and will stick to themselves. When dried they become an extremely hard, strong, self supporting composite structures. RS-Putty can be used to burnish any surface and provide a very smooth hard finish. After a low temperature bake-out of 300°C (570°F) RS-Cloth and RS-Tape are unaffected by moisture.

They offer the strength, durability, flexibility and versatility required by many high temperature applications up to 1300°C (2373°F). Their high alumina content makes Refractory Sheet RS-Cloth and RS-Tape highly resistant to many environments including Hot Glass handling, molten aluminum and chemical and petroleum processing. After they are baked out they are not affected by water as well as many types of fuel oils.

When hardened with AL-HARD Refractory Sheet RS-Cloth and RS-Tape become “rock hard” for greater strength.

Properties

Color

White

Composition, %
   Al2O3

65

   SiO2

21

   Other Oxides

14

   Organic Content

<1

Bulk Density, gm/cm3 (pcf)

1.5 (92)

Flammability

Nil

Maximum Service Temp *, C (F)

1300 (2373)

Melting Point, C (F)

1500 (2732)

Tensile Strength, MPa (psi)

2.93 (425)

Linear Shrinkage, %
   24 hrs@1100°C, (2012°F)

2

Thermal Conductivity, Estimated,
W/m °K (Btu/hr°F ft2/in.)
   800°C (1472°F)

0.6 (4)



*Maximum Use Temperature is dependant on variables such as the stresses, both thermal and mechanical, and the environment that the insulation experiences.

Composition

Refractory Sheet Cloth and Tape are ceramic fiber reinforced alumina composites. They offer strength, durability, flexibility and versatility required by many high temperature applications up to 1300°C(2373°F). Its high Alumina content makes Refractory Sheet Cloth and Tape highly resistant to many environments including molten aluminum as well as many types of fuel oils. When hardened with AL-Hard. Refractory Sheet Cloth and Tape become “rock hard” for greater strength.

Instructions

SUGGESTED APPLICATIONS

  • High temperature, high strength gasketing
  • Replacement for asbestos textiles in induction glass melting furnaces
  • High temperature pipe wrapping
  • Induction heating furnace coil liners & insulators
  • Electrical insulation for band and strip heaters
  • Non-ferrous metal transport
  • Flame and splash curtains
  • Hot glass handling
  • Reinforcement of composite structures
  • Immersion pyrometer protection tubes
  • Small appliance electrical insulation
  • Wire and cable insulation
  • Pipe wrap and protection

PDF

Download the RS-Tape PDF File

SDS (in PDF format)

Download 1st PDF File

Other Information

AVAILABILITY

Please call, fax or e-mail for pricing and availability.

Item # Description
MS001 RS-TAPE, 0.5″ X 100′ X 1/32″
MS002 RS-TAPE, 0.75″ X 100′ X 1/32″
MS003 RS-TAPE, 1″ X 100′ X 1/32″
MS004 RS-TAPE, 1.25″ X 100′ X 1/32″
MS005 RS-TAPE, 1.5″ X 100′ X 1/32″
MS006 RS-TAPE, 2″ X 100′ X 1/32″
MS007 RS-TAPE, 2.5″ X 100′ X 1/32″
MS008 RS-TAPE, 3″ X 100′ X 1/32″
MS009 RS-TAPE, 3.5″ X 100′ X 1/32″
MS010 RS-TAPE, 4″ X 100′ X 1/32″
MS011 RS-TAPE, 5″ X 100′ X 1/32″
MS012 RS-TAPE, 6″ X 100′ X 1/32″
MS013 RS-TAPE, 0.5″ X 100′ X 1/16″
MS014 RS-TAPE, 0.75″ X 100′ X 1/16″
MS015 RS-TAPE, 1″ X 100′ X 1/16″
MS016 RS-TAPE, 1.25″ X 100′ X 1/16″
MS017 RS-TAPE, 1.5″ X 100′ X 1/16″
MS18 RS-TAPE, 2″ X 100′ X 1/16″
MS19 RS-TAPE, 2.5″ X 100′ X 1/16″
MS20 RS-TAPE, 3″ X 100′ X 1/16″
MS21 RS-TAPE, 3.5″ X 100′ X 1/16″
MS22 RS-TAPE, 4″ X 100′ X 1/16″
MS23 RS-TAPE, 5″ X 100′ X 1/16″
MS24 RS-TAPE, 6″ X 100′ X 1/16″
MS25 RS-TAPE, 7″ X 100′ X 1/16″
MS26 RS-TAPE, 8″ X 100′ X 1/16″
MS27 RS-TAPE, 9″ X 100′ X 1/16″
MS28 RS-TAPE, 10″ X 100′ X 1/16″
MS29 RS-TAPE, 11″ X 100′ X 1/16″
MS30 RS-TAPE, 12″ X 100′ X 1/16″
MS31 RS-TAPE, 0.5″ X 100′ X 1/8″
MS32 RS-TAPE, 0.75″ X 100′ X 1/8″
MS33 RS-TAPE, 1″ X 100′ X 1/8″
MS34 RS-TAPE, 1.25″ X 100′ X 1/8″
MS35 RS-TAPE, 1.5″ X 100′ X 1/8″
MS36 RS-TAPE, 2″ X 100′ X 1/8″
MS37 RS-TAPE, 2.5″ X 100′ X 1/8″
MS38 RS-TAPE, 3″ X 100′ X 1/8″
MS39 RS-TAPE, 3.5″ X 100′ X 1/8″
MS40 RS-TAPE, 4″ X 100′ X 1/8″
MS41 RS-TAPE, 5″ X 100′ X 1/8″
MS42 RS-TAPE, 6″ X 100′ X 1/8″
MS43 RS-TAPE, 7″ X 100′ X 1/8″
MS44 RS-TAPE, 8″ X 100′ X 1/8″
MS45 RS-TAPE, 9″ X 100′ X 1/8″
MS46 RS-TAPE, 10″ X 100′ X 1/8″
MS47 RS-TAPE, 11″ X 100′ X 1/8″
MS48 RS-TAPE, 12″ X 100′ X 1/8″
MS49 RS-TAPE, 1″ X 100′ X 1/4″
MS50 RS-TAPE, 1.25″ X 100′ X 1/4″
MS51 RS-TAPE, 1.5″ X 100′ X 1/4″
MS52 RS-TAPE, 2″ X 100′ X 1/4″
MS53 RS-TAPE, 2.5″ X 100′ X 1/4″
MS54 RS-TAPE, 3″ X 100′ X 1/8″
MS55 RS-TAPE, 3.5″ X 100′ X 1/4″
MS56 RS-TAPE, 4″ X 100′ X 1/4″
MS57 RS-TAPE, 5″ X 100′ X 1/4″
MS58 RS-TAPE, 6″ X 100′ X 1/4″
MS59 RS-TAPE, 7″ X 100′ X 1/4″
MS60 RS-TAPE, 8″ X 100′ X 1/4″
MS61 RS-TAPE, 9″ X 100′ X 1/4″
MS62 RS-TAPE, 10″ X 100′ X 1/4″
MS63 RS-TAPE, 11″ X 100′ X 1/4″
MS64 RS-TAPE, 12″ X 100′ X 1/4″
MS75 RS CLOTH, 40″ X 3′ X 1/16″
MS76 RS CLOTH, 40″ X 15′ X 1/16″
