RS-201 and RS-202 Cylinders

  Christina Park   May 03, 2016     Comments Off on RS-201 and RS-202 Cylinders
Refractory Sheet Cylinder RS 101 and RS 102

General Info

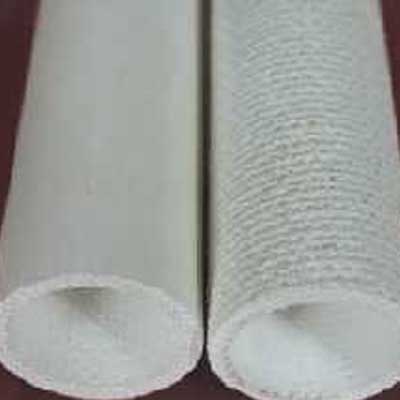

ZRCI Refractory Sheet Type RS-201 and RS-202 are fiber reinforced ceramic laminate with useful properties to 1260°C (2300°F). These high temperature products offer high strength, moderate thermal conductivity and excellent electrical insulation. They retain their strength and utility to levels far exceeding maximum use temperatures of reinforced plastics and asbestos cement replacements. They are 100% inorganic, non-flammable and contains no asbestos. Their high alumina content makes them resistant to many environments including molten aluminum. RS-201 and RS-202 undergoes little or no outgassing on heating, are not brittle, and may be cut and machined with standard tooling. RS-201 has a highly burnished outside surface. This is ideal when the OD is crucial for liner placement. RS-202 has an as formed surface. They are available in standard and custom size cylinders and are useful as induction coil liners, induction furnace components, and molten metal transport tubes.

Compared to ZRCI Refractory Sheet Type RS-101 Cylinders , RS-201 has the following attributes:

  • Finer reinforcement structure which allows

  • for machining of intricate detail

  • Less tendency to delaminate

  • Higher strength

Refractory Sheet Material is available in board form as Refractory Sheet Type RS-200

Properties

Color

White to buff

Typical Composition, %
   Al2O3

65

   SiO2

21

   CaO

8

   B2O3

4

   MgO

1

   Other Metal Oxides

1

   Organics

Nil

Density, kg/m3(pcf)

2080 (130)

Maximum Use Temperature* C (F)

1260 (2300)

Melting Point, C (F)

1500 (2732)

Volume Resistivity, (ASTM D-257) ohm-cm

1.7×1012

Surface Resistivity, (ASTM D-257) ohms

>1.3 x1013

Dielectric Strength, (ASTM D-149) Volts/mil

26

Arc Resistance, (ASTM D-495) sec.

>420

Thermal Conductivity**,
   W/mK(BTU/hr. ft2 °F/in.)
   204°C (400°F)

4.3 (.62)

   427°C (800°F)

4.5 (.65)

   649°C (1200°F)

4.6 (.66)

   1010°C (1850°F)

4.7 (.68)

Thermal Expansion

~8×10-6/°C (4.4×10-6/°F)

Linear Shrinkage^, %
   24hrs. at 1010°C (1850°F)

<1

Compressive Strength**, ksi
   As supplied

13

   24hrs. at 300°C (570°F)

9

   24hrs. at 510°C (950°F)

8

   24hrs. at 800°C (1472°F)

8

   24hrs. at 1010°C (1850°F)

10

Flexural Strength, MOR at room temp. ksi
   As supplied
   24hrs. at 300°C (570°F)

10^^

   24hrs. at 510°C (950°F)

4.5

   24hrs. at 800°C (1472°F)

4.0

   24hrs. at 1010°C (1850°F)

3.0

Porosity, %

30

* Maximum use temperature is dependent on variables such as stresses, both thermal and mechanical, and the chemical environment that the material experiences.
** Properties expressed parallel to thickness.
^ Properties expressed perpendicular to thickness.
^^Retains 10 ksi MOR after 100 hr. soak in water at room temperature

Composition

  • Electrically Insulating
  • High Strength
  • High Alumina Content
  • Chemical Resistant
  • Fully Machinable
  • Non RCF

Instructions

SUGGESTED APPLICATIONS

  • Induction Coil Liners
  • Induction Furnace Components
  • Molten Aluminum Transport
  • High Temperature Electrical Insulation
  • Asbestos Replacement Pipe Replacement
  • Hot Gas Flue Linings

Maximum Tempurature

2300 F / 1260 C

MSDS

MSDS-5

Other Information

AVAILABILITY

Please call, fax or e-mail for pricing and availability.

Item # Description
GS01 RS-201, 1″ ID X 1 1/4″ OD X 36″ L
GS02 RS-201, 1″ ID X 1 1/2″ OD X 36″ L
GS03 RS-201, 2″ ID X 2 1/4″ OD X 36″ L
GS04 RS-201, 2″ ID X 2 1/2″ OD X 36″ L
GS05 RS-202, 1″ ID X 1 1/4″ OD X 36″ L
GS06 RS-202, 1″ ID X 1 1/2″ OD X 36″ L
GS50 RS-202, 2″ ID X 2 1/4″ OD X 36″ L
GS51 RS-202, 2″ ID X 2 1/2″ OD X 36″ L

PRICES ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION AND ARE SUBJECT TO ZIRCAR REFRACTORY COMPOSITES, INC. TERMS AND CONDITIONS. ALL PRICES ARE F.O.B. FLORIDA, NY AND ARE IN U.S. DOLLARS
