RS-SI Moldable

  Christina Park   May 01, 2016     Comments Off on RS-SI Moldable
RS SI Moldable

General Info

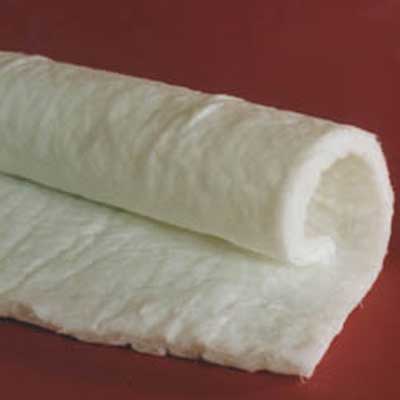

ZIRCAR Silica Moldable Type RS-SI Moldable is a wet blanket that is a combination of high purity amorphous silica fibers and inorganic silica binder. The fibers are 6-9 um in diameter and are considered non-respirable. Upon drying, Type RS-SI Moldable becomes a rigid structure with useful properties to temperatures of 1100°C (2012°F).

Type RS-SI Moldable exhibits good wet handleability. It is easily cut with scissors or a knife and can be applied directly to equipment with complex contours. It can also be used to fabricate flat sheets or boards. Drying can be accomplished in an oven, with a hot air gun or torch, or by exposure to heat in the application. Drying results in a strong, rigid, low density shape that can be re-wet to restore the original moldability. Baking irreversibly removes the moldability, leaving Refractory Sheet Type RS-SI Moldable unaffected by moisture.

Type RS-SI Moldable exhibits excellent resistance to attack by most chemicals with the exception of caustics. It will tolerate all acids except hydrofluoric acid. It is not wet by molten aluminum . RS-SI Moldable is 100% organic free and contains no refractory ceramic fiber. It is readily machined to precision tolerances with conventional tooling.

Properties

Color White
Typical Composition, %
   SiO2 99+
   Organics None
Solids Content, as supplied, % 53
Density, dried, g/cc(pcf) 0.64(40)
Fiber Diameter, microns 3 – 4
Maximum Use Temperature* C (F) 1200(2192)
Melting Point, C (F) 1698(3000)
Linear Shrinkage^, %
   as supplied to dry at 105°C(222°F) 0 – 1
   24hrs. at 1010°C (1850°F) 5 – 7

* Maximum use temperature is dependent on variables such as stresses, both thermal and mechanical, and the chemical environment that the material experiences.
‡ Properties expressed perpendicular to thickness.

Composition

  • Immune to Thermal Shock
  • Highly Insulating, Low Mass
  • Strong Self Supporting When Dry
  • Non RCF

Instructions

  • Transport of Molten Non- Ferrous Metals

  • Trough and Launder Liners.

  • Furnace Repair

  • Furnace Door linings and Seals.

  • Expansion Joint Seals.

  • Glass Furnace Crown Insulation.

  • Insulation Wrap for High Temperature Process Piping.

  • High Temperature Gasketing.

  • High Temperature Kiln and Furnace Insulation.

  • Self Supporting Mold Wrap.

  • Fabrication into Rigid Silica Fiber Boards and Cylinders.

  • Useful where Refractory Ceramic Fibers Are Not Desired.

Maximum Tempurature

2012 F / 1100 C

SDS

ZRCI SDS-0003

Other Information

Please call, fax or e-mail for pricing and availability.

Item # Description
HS50 RS-SI, 24″ X 36″ X 1/8″
HS51 RS-SI, 24″ X 36″ X 1/4″
HS52 RS-SI, 24″ X 36″ X 1/2″
HS53 RS-SI, 24″ X 36″ X 3/4″
HS54 RS-SI, 24″ X 36″ X 1″

PRICES ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION AND ARE SUBJECT TO ZIRCAR REFRACTORY COMPOSITES, INC. TERMS AND CONDITIONS. ALL PRICES ARE F.O.B. FLORIDA, NY AND ARE IN U.S. DOLLARS
